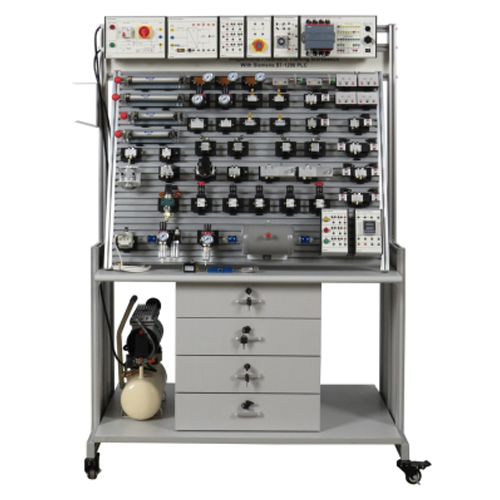

Proportional Pneumatic Training Workbench With Siemens S7-1200 PLC Didactic Equipment Educational Workbench Pneumatic Didactic Equipment

1. Product Introduction
1.1 Product Description
This system is designed according to the requirements of modern pneumatic engineering teaching experiments and the general content of textbooks such as "Pneumatic Transmission" and "Pneumatic Control Technology". In addition to conventional basic pneumatic control circuit experiments, this system can also simulate pneumatic control technology application experiments and pneumatic technology course design, making it a typical mechatronics experimental device.
Through practical experiments and course design, students can accurately grasp the structure of pneumatic components, the control principles and design methods of pneumatic circuits, and control principles.
1.2 Product Features
1. The experimental platform is designed to meet students' needs; each component, circuit, and electrical control can be independently controlled.
2. Modular structure design, simple and convenient. Various pneumatic components are independent modules, facilitating circuit board installation. Experiments can be freely conducted on ordinary aluminum plates. Assembling various experimental circuits is simple.
3. Fast and reliable engineering, simple installation, and convenient connection.
4. Uses standard industrial components, ensuring reliable and safe performance.
2. Technical Specifications
2.1 Technical Parameters
Power Supply Parameters: Single-phase three-wire AC 220V 50Hz
2.2 Dimensions and Weight
Dimensions: 1300mmX800mmX1780mm
Weight: <200kg

3. Product Component Names and Functions
3.1 Main Body of the Product
